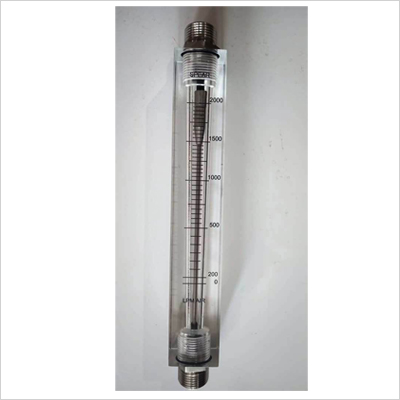

Acrylic Body Rotameter

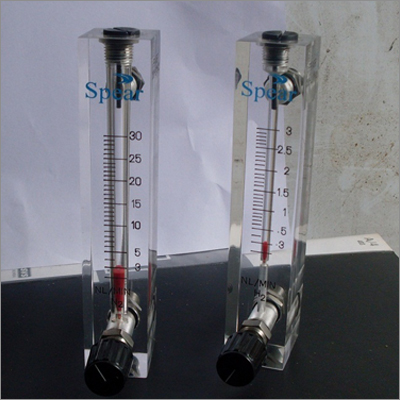

Acrylic Body Rotameters are machined from clear acrylic block. They are designed to give maximum accuracy in visibility and ruggedness.

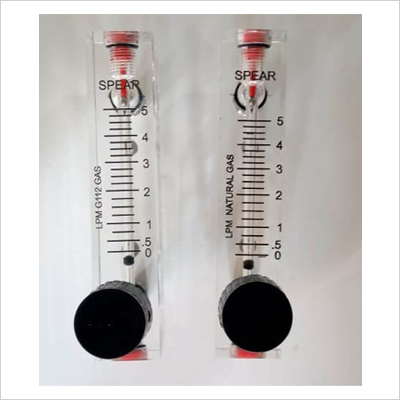

The floats are made from Stainless Steel, PVC and other non corrosive plastics and offered as per the process requirement. The needle valve is provided for accurate flow control. It is designed to give accuracy of within 1.5 to 2 % at full scale. The higher accuracy can be made on specific requirement.
The Rotameter can be fitted with Top / Bottom or rear connections as per specific requirement. The Rotameters are ideal for direct panel mounting because of their clear modular appearance, online installation is also possible.
Technical Specification
| Available Sizes | 15 mm NB to 100 mm NB |
| Body Shape | Round / Square Block |
| Flow Range | 2.5 to 40,000 LPH of water or 0.1 to 300 Nm³/hr of air at ambient temperature. |
| Mounting | Screwed , Flanged , tri-clamp |
| Temperature range | Up to 50 °C |
| Float MOC | SS / PTFE / SS Ball / Glass Ball / PVC |
| Wetted Parts MOC | SS 316-L , SS 316 , SS 304 , PP , PVDF, PTFE etc. |
