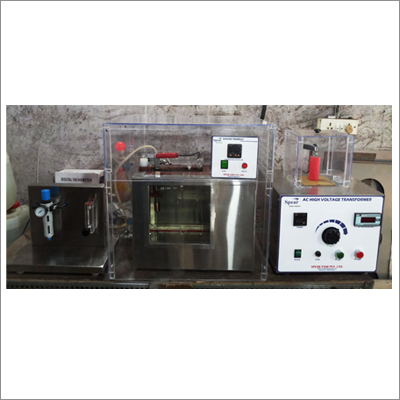

Gassing Tendency Apparatus

As per ASTM D-2300, BS 5797:1986, IEC 628:1985


  • Fully Made with Stainless Steel Assembly
  • Gassing cell and gas burette assembly made of borosilicate glass with a relative permittivity of 5 ± 0.2 at 80°C.
  • Hollow high-voltage electrode-made of centre less-ground and polished stainless steel with stainless steel capillary tubing as a gas passage. The electrode is supported by PTFE Plug
  • Constant temperature oil bath with a heating and circulation with digital temperature control system.
  • Transparent safety shield-made of clear view acrylic sheet.
  • Power supply : 120 V / 230 Volt AC, 1 Phase, 50/60 Hz
